NEW PRODUCT RELEASE

D750-0093-BLK / -BRU

Dinan 20 inch Forged DC3 Performance Wheel Set

Applications:

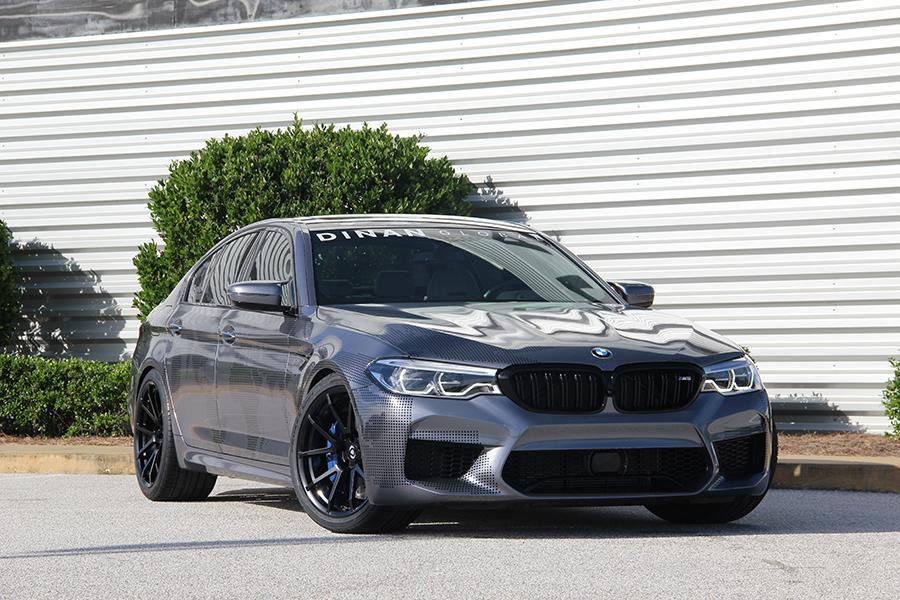

BMW F90 M50

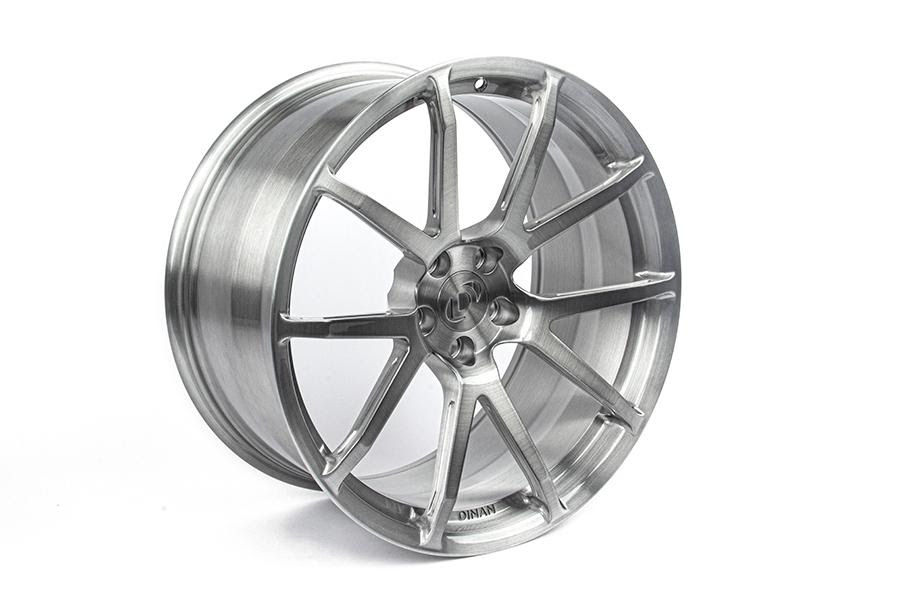

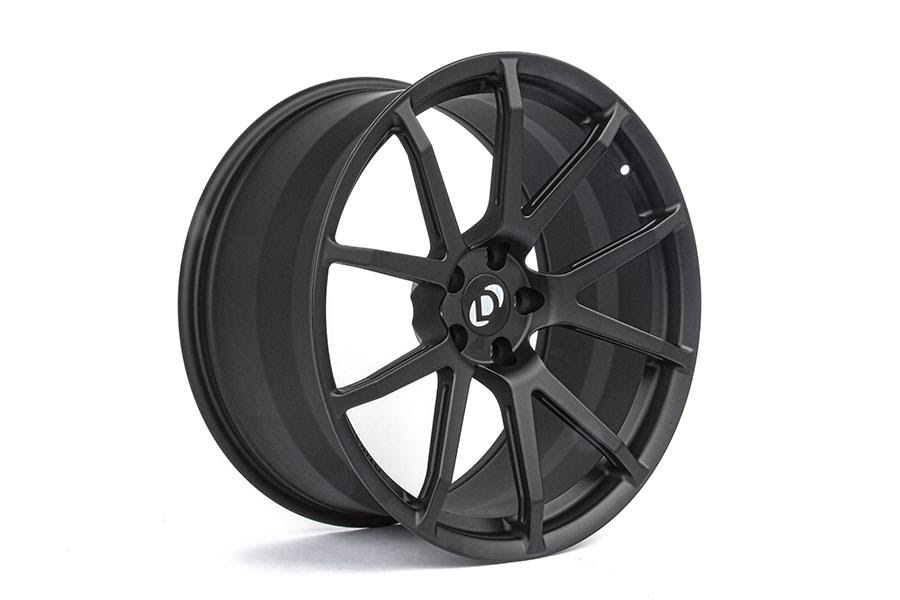

DC3 Forged Wheels

The Dinan DC3 forged wheels are made with performance in mind. Built specifically for the F90, they utilize offsets and sizes for accommodating larger tires without any rubbing or modification of the wheel well. They are also manufactured using the latest strengthening and weight savings technologies resulting in a reduction of unsprung weight that improves your BMW’s grip on the road.

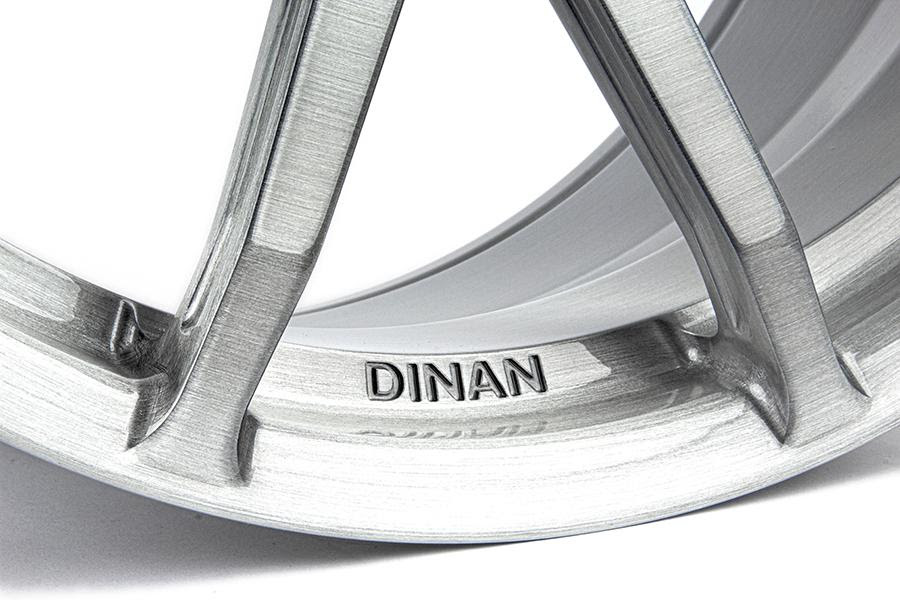

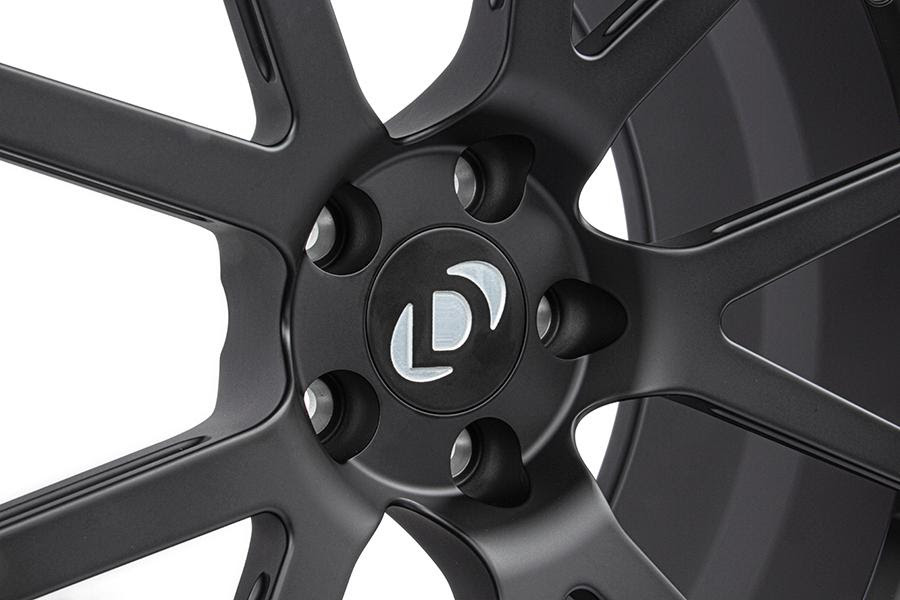

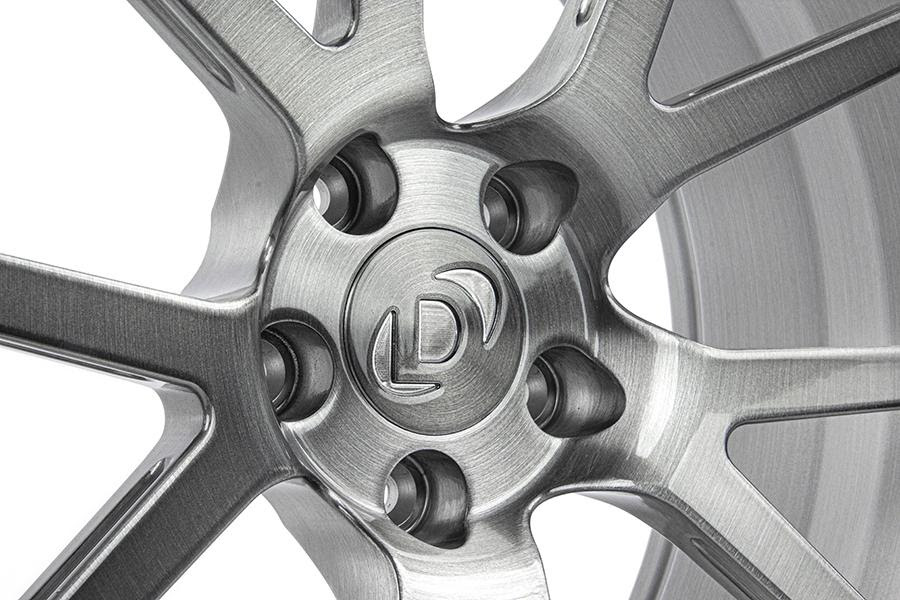

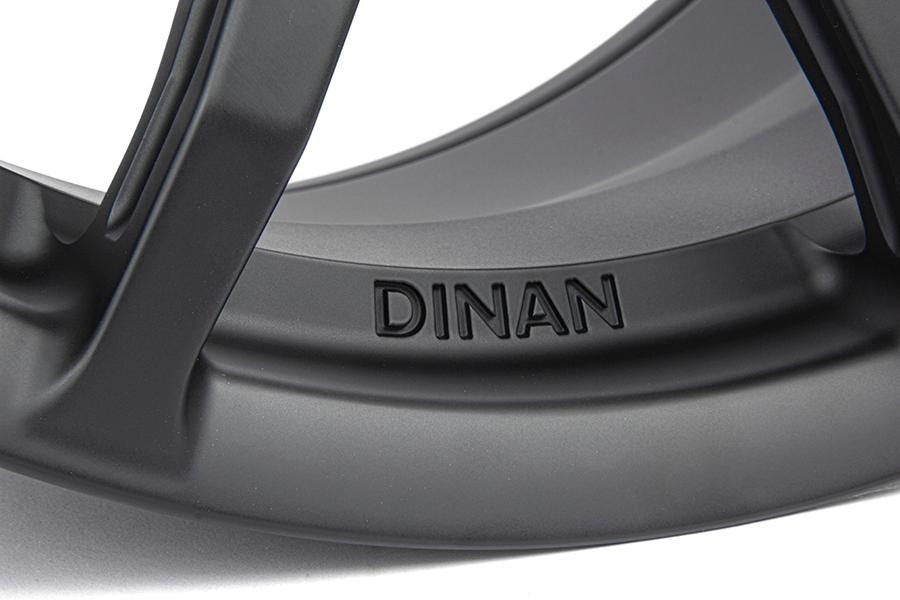

While performance characteristics are paramount for any Dinan wheel, we would be remiss if the aesthetics were not as equally important. Featuring a clean and timeless angular 5-spoke Y design with hard edge knuckle accents and weight saving spoke pockets the DC3 caters to many different tastes. With its subtle aggressive accents and tasteful styling the newest addition to a long line of signature Dinan wheels the DC3 is sure to cement itself alongside some of the most sought after Dinan wheels of all time.

Dinan 20″ Forged DC3 Performance Wheel Specifications:

Front Wheel
Size: 20″ x 10.0″ et26
Weight: 22.5 lbs / 10.2 kg (Factory 20×9.5: 35.3 lbs / 16 kg)

Rear Wheel
Size: 20″ x 11.0″ et31
Weight: 23.6 lbs / 10.7 kg (Factory 20×10.5: 36.4 lbs / 16.5 kg)

Dinan 20″ Forged DC3 Performance Wheel Sets For BMW F90 M5 Features / Benefits:

  • Aerospace-grade 6061-T6 forged aluminum for extreme strength-to-weight ratio
  • Lightweight at only 22.5 lbs for a 20×10 (Factory is 35.3 lbs for a 20×9.5)
  • 5x112mm bolt pattern
  • Wheels accommodate substantially larger tires for maximum grip and reduction of understeer by bringing the front and rear tire sizes closer together
  • Engineered to minimize unsprung mass and rotational inertia for maximum performance and handling
  • Finite Element Analysis (FEA) designed to minimize weight, yet retain a 1560 lb / 707 kg load rating at each corner
  • Classic design suitable for both track and street performance
  • DOT, VIA, and JWL certified
  • OE TPMS and lug hardware compatible for ease of installation
  • Includes Dinan center caps
